059517 | MANN+HUMMEL | Pleated Paper Element

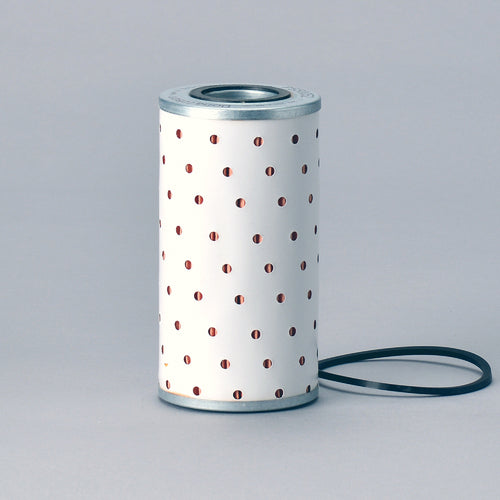

***Image may vary***

059517 | MANN+HUMMEL | Pleated Paper Element | OFS # 97-01-0348

  • $8.14
  • Save $2.77


PLEATED PAPER ELEMENT Lead Time: In Stock

Performance Data
Micron Rating:  25.00 NOMINAL

Beta Rating:  N/A

Collapse Pressure Rating:  75 PSID

Maximum Temperature:  225 F

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID



Dimensional Specifications
Outer Diameter, Top:  2.75 IN   (69.85 MM)

Outer Diameter, Bottom:  2.75 IN   (69.85 MM)

Inner Diameter, Top:  1.31 IN   (33.27 MM)

Inner Diameter, Bottom:  1.31 IN   (33.27 MM)

Length:  5.33 IN   (135.38 MM)

Thread:  NONE



Physical Specifications
Handle:  NONE

Seal Material:  BUNA-N

Type of Adhesive:  PLASTISOL

Type of Endcap:  PLATED STEEL

Center Tube:  PLATED STEEL

Type of Media:  PAPER

Filter Area:  SQ.IN.

Plating:  NONE

Outer Jacket:  YES - PAPER

Configuration:  DOUBLE OPEN END



Packaging Specifications
Number per Carton:  1

Carton Weight:  4.30 LB   (1.95 KG)



***All Online Filter Supply replacement parts are equivalent to or interchangeable with original manufacturer parts, Names and part # used for cross reference only.***
