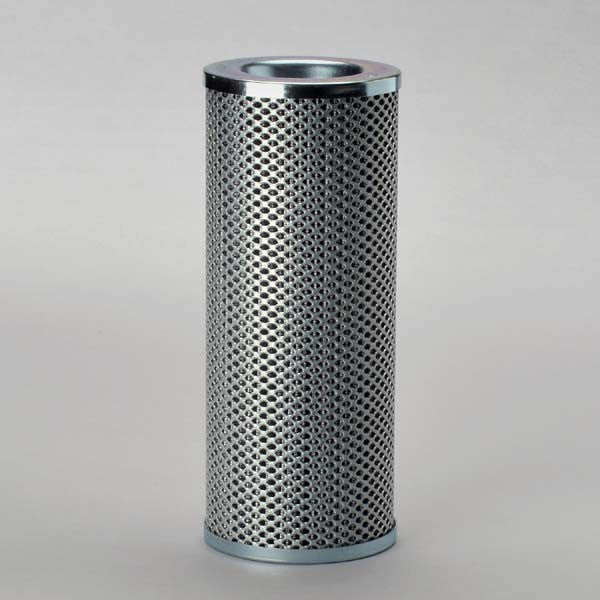

MR250-3A10 | Mp Filtri | Pleated Microglass Element
***Image may vary***

MR250-3A10 | Mp Filtri | Pleated Microglass Element | OFS # 97-28-2152

  • $79.90


PLEATED MICROGLASS ELEMENT Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 10.00 ABSOLUTE

Beta Rating: B10 = 200

Collapse Pressure Rating: 75 PSID

Maximum Temperature: 250 F

Direction of Flow: INSIDE->OUT

Recommended Changeout Differential Pressure: 20 PSID

Additional Notes: BUNA-N O-RING ON ONE END.



Dimensional Specifications
Outer Diameter, Top: 4.17 IN (105.92 MM)

Outer Diameter, Bottom: 4.17 IN (105.92 MM)

Inner Diameter, Top: 0.35 IN (8.89 MM)

Inner Diameter, Bottom: 2.84 IN (72.14 MM)

Length: 10.24 IN (260.10 MM)

Thread: NONE



Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: EPOXY

Type of Endcap: PLATED STEEL

Center Tube: NONE

Type of Media: MICROGLASS

Filter Area: SQ.IN.

Plating: ZINC PLATE

Outer Jacket: YES

Configuration: SINGLE OPEN / BOLT



Packaging Specifications
Number per Carton: 1

Carton Weight: 4.00 LB (1.81 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
