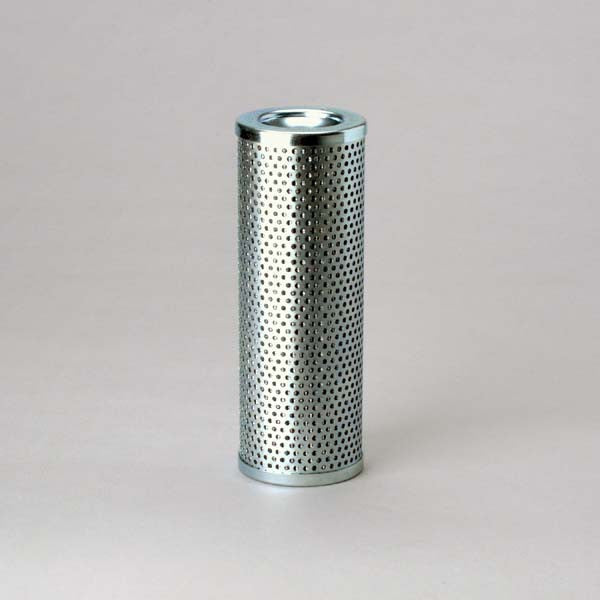

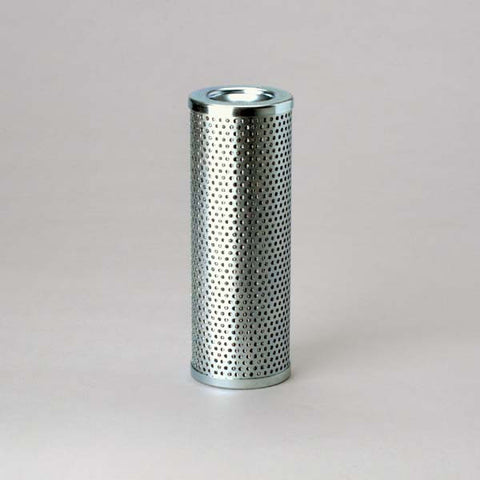

MR1003A10 | Mp Filtri | Hydraulic Element
***Image may vary***

MR1003A10 | Mp Filtri | Hydraulic Element | OFS # 97-28-5274

  • $44.80


Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 10.00 ABSOLUTE

Beta Rating: B10 = 200

Collapse Pressure Rating: 75 PSID

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID



Dimensional Specifications
Outer Diameter, Top: 2.81 IN (71.37 MM)

Outer Diameter, Bottom:

Inner Diameter, Top: 1.81 IN (45.97 MM)

Inner Diameter, Bottom: 0.31 IN (7.87 MM)

Length: 7.69 IN (195.33 MM)

Thread: NONE



Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: EPOXY

Type of Endcap: PLATED STEEL

Center Tube: NONE

Type of Media: MICROGLASS

Filter Area: SQ.IN.

Plating: ELECTROTIN PLATED

Outer Jacket: YES - METAL

Configuration:



Packaging Specifications
Number per Carton: 1

Carton Weight: **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
