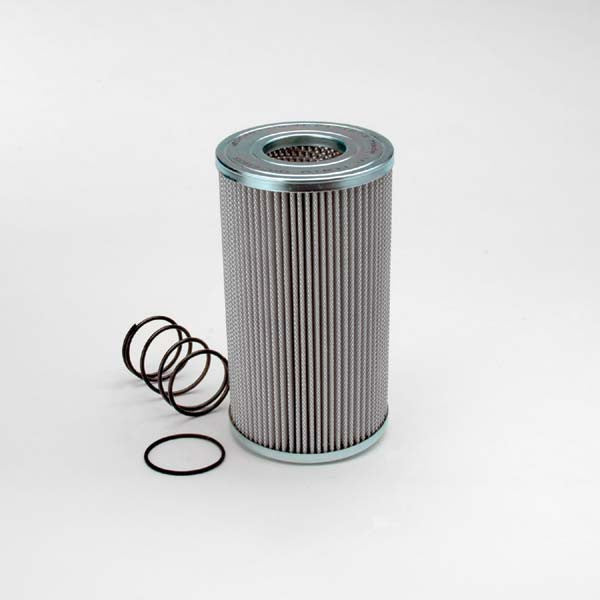

MPF4003AG2AA10HB | Mp Filtri | Pleated Microglass Element | OFS # 97-28-2735

PLEATED MICROGLASS ELEMENT Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 10.00

Beta Rating: BX = 200

Collapse Pressure Rating: 150 PSID

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 5.12 IN (130.05 MM)

Outer Diameter, Bottom: 5.12 IN (130.05 MM)

Inner Diameter, Top: 2.56 IN (65.02 MM)

Inner Diameter, Bottom:

Length: 9.87 IN (250.70 MM)

Thread: NONE

Physical Specifications
Handle: YES

Seal Material: BUNA-N

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: MICROGLASS

Filter Area: SQ.IN.

Plating: ZINC PLATED

Outer Jacket: NONE

Configuration: SINGLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: 3.00 LB (1.36 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
