MP9307 | Mp Filtri | Pleated Microglass Element | OFS # 97-05-0068

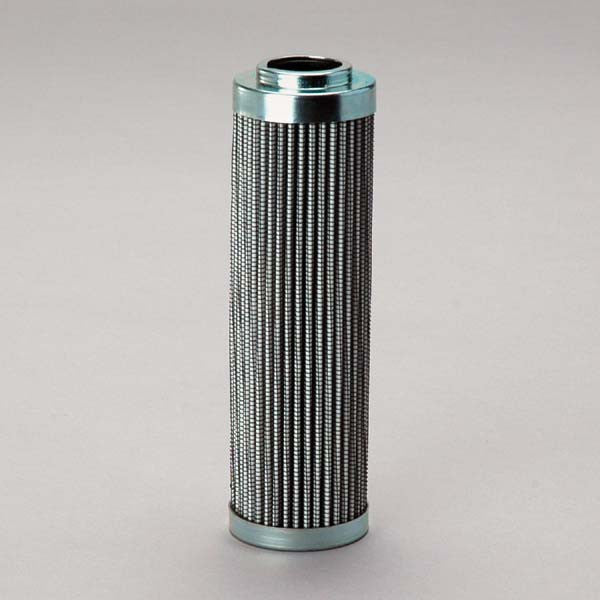

PLEATED MICROGLASS ELEMENT Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 25.00 ABSOLUTE

Beta Rating: B25 = 200

Collapse Pressure Rating: 250 PSID

Maximum Temperature: 250 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 50 PSID

Additional Notes: REPLACEMENT FOR HYCON PART NUMBER 0110D020BNHC

Dimensional Specifications
Outer Diameter, Top: 1.85 IN (46.99 MM)

Outer Diameter, Bottom: 1.85 IN (46.99 MM)

Inner Diameter, Top: 0.88 IN (22.35 MM)

Inner Diameter, Bottom:

Length: 6.00 IN (152.40 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: VITON

Type of Adhesive: EPOXY

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: MICROGLASS

Filter Area: 1.25 SQ.FT.

Plating: ZINC PLATED

Outer Jacket: NONE - NONE

Configuration: SINGLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
