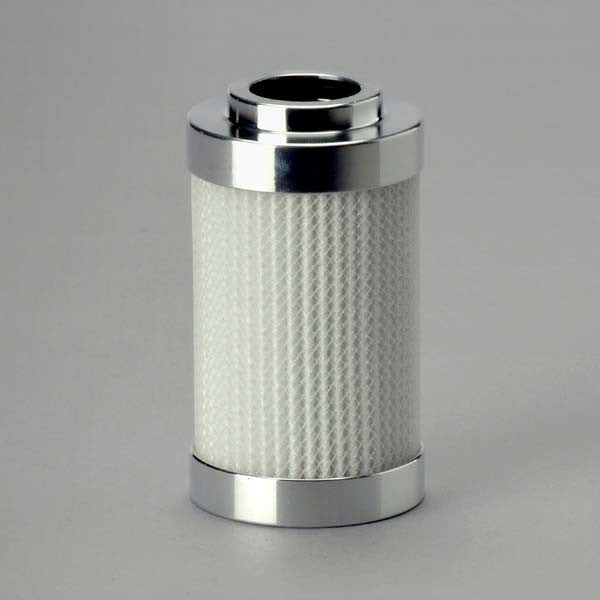

MP9206 | Mp Filtri | Pleated Microglass Element | OFS # 97-05-0063

PLEATED MICROGLASS ELEMENT Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 12.00 ABSOLUTE

Beta Rating: B12 = 200

Collapse Pressure Rating: 100 PSID

Maximum Temperature: 375 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 50 PSID

Dimensional Specifications
Outer Diameter, Top: 1.88 IN (47.75 MM)

Outer Diameter, Bottom: 1.88 IN (47.75 MM)

Inner Diameter, Top: 0.86 IN (21.84 MM)

Inner Diameter, Bottom:

Length: 3.28 IN (83.31 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: VITON

Type of Adhesive: EPOXY

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: MICROGLASS

Filter Area: 60 SQ.IN.

Plating: ZINC PLATED

Outer Jacket: NONE - NONE

Configuration: SINGLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
