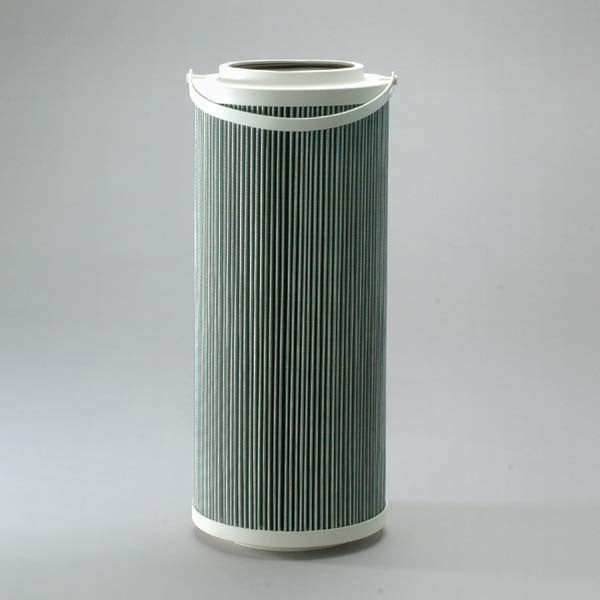

MP5249 | Mp Filtri | Pleated Microglass Element |OFS # 97-F8314-16K25B
Usually Ships In 24-48 Hours
Performance Data
Micron Rating: 25.00 ABSOLUTE
Beta Rating: B25 = 200
Collapse Pressure Rating: 150 PSID
Maximum Temperature: 250 F
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 50 PSID
Dimensional Specifications
Outer Diameter, Top: 6.00 IN (152.40 MM)
Outer Diameter, Bottom: 6.00 IN (152.40 MM)
Inner Diameter, Top: 3.75 IN (95.25 MM)
Inner Diameter, Bottom: 3.75 IN (95.25 MM)
Length: 14.63 IN (371.60 MM)
Thread: NONE
Physical Specifications
Handle: YES
Seal Material: BUNA-N
Type of Adhesive: EPOXY
Type of Endcap:
Center Tube: CORELESS
Type of Media: MICROGLASS
Filter Area: SQ.IN.
Plating: ZINC PLATED
Outer Jacket: NONE - NONE
Configuration: DOUBLE OPEN END
Packaging Specifications
Number per Carton: 1
Carton Weight: 7.00 LB (3.18 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
