P138 | Luber-Finer
***Image may vary***

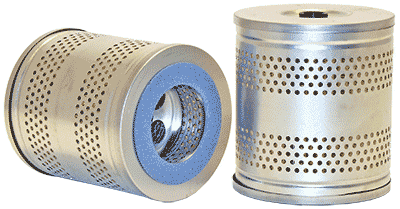

P138 | Luber-Finer | Replacement | OFS # 97-01-0823

  • $22.39


In Stock

Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: 75 PSID

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID



Dimensional Specifications
(A) Outer Diameter, Top: 4.50 IN (114.30 MM)

(B) Outer Diameter, Bottom: 4.50 IN (114.30 MM)

(C) Inner Diameter, Top: 0.53 IN (13.46 MM)

(D) Inner Diameter, Bottom: 2.27 IN (57.66 MM)

(E) Length: 5.00 IN (127.00 MM)

(F) Thread: NONE



Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating:

Outer Jacket: YES

Configuration: SINGLE OPEN END



Packaging Specifications
Number per Carton: 1

Carton Weight: 12.00 LB (5.44 KG)
