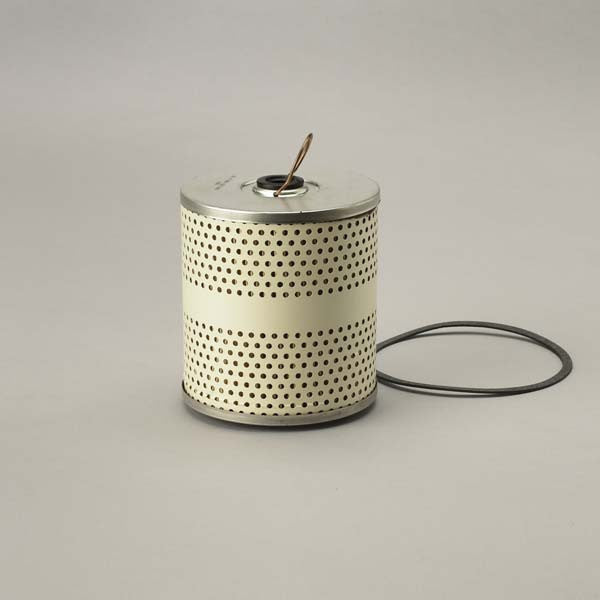

LP4 | Luber-Finer | Pleated Paper Filter Element
***Image may vary***

LP4 | Luber-Finer | OFS # 97-01-0846

  • $22.39


Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 25.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: 75 PSID

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID



Dimensional Specifications
Outer Diameter, Top: 4.22 IN (107.19 MM)

Outer Diameter, Bottom: 4.22 IN (107.19 MM)

Inner Diameter, Top: 0.50 IN (12.70 MM)

Inner Diameter, Bottom: 0.50 IN (12.70 MM)

Length: 4.88 IN (123.95 MM)

Thread: NONE



Physical Specifications
Handle: YES

Seal Material: BUNA-N

Type of Adhesive: PLASTISOL

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: ELECTROTIN PLATED

Outer Jacket: YES

Configuration: DOUBLE OPEN END



Packaging Specifications
Number per Carton: 1

Carton Weight: 10.00 LB (4.54 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
