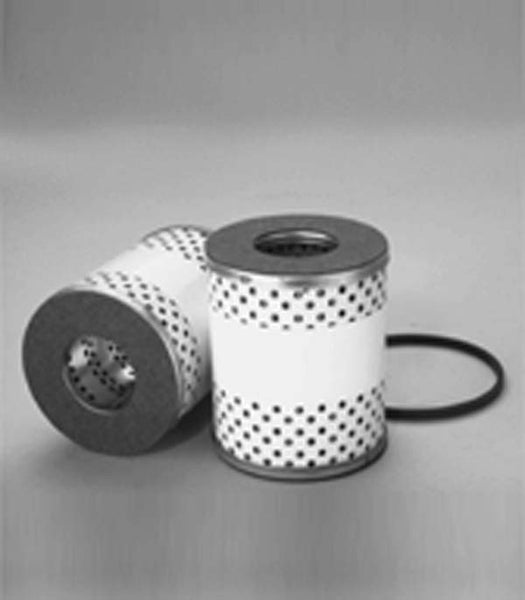

LP2470 | Luber-Finer | Pleated Paper Filter Element
***Image may vary***

LP2470 | Luber-Finer | OFS # 97-01-0809

  • $6.80


Usually Ships In 24-48 Hours

Performance Data
Micron Rating:  22.00 NOMINAL

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:  225 F

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Additional Notes:  GASKET PAPER ACTS AS BOTH END CAP AND SEALANT



Dimensional Specifications
Outer Diameter, Top:  2.88 IN   (73.15 MM)

Outer Diameter, Bottom:

Inner Diameter, Top:  1.83 IN   (46.48 MM)

Inner Diameter, Bottom:

Length:  3.44 IN   (87.38 MM)

Thread:  NONE



Physical Specifications
Handle:  NONE

Seal Material:  BUNA-N

Type of Adhesive:  NONE

Type of Endcap:  GASKET PAPER

Center Tube:  PLATED STEEL

Type of Media:  PAPER

Filter Area:  234.7 SQ.IN.

Plating:

Outer Jacket:  YES

Configuration:  DOUBLE OPEN END



Packaging Specifications
Number per Carton:  1

Carton Weight:  0.30 LB   (0.14 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
