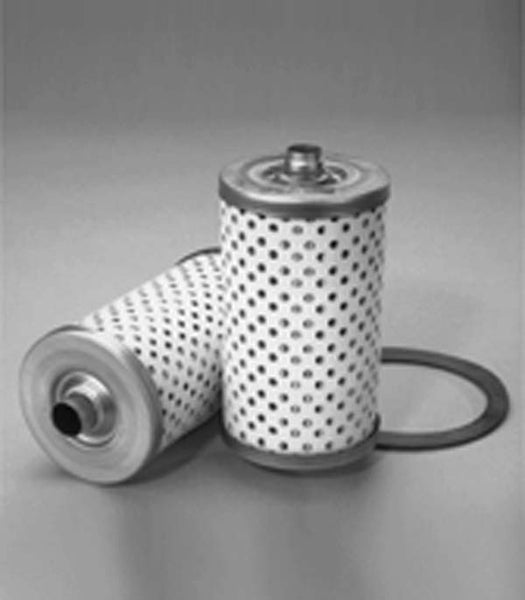

LP2280 | Luber-Finer | Pleated Paper Filter Element
***Image may vary***

LP2280 | Luber-Finer | OFS # 97-01-0904

  • $6.56


Usually Ships In 24-48 Hours

Performance Data
Micron Rating:  25.00 NOMINAL

Beta Rating:  N/A

Collapse Pressure Rating:  75 PSID

Maximum Temperature:  225 F

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID



Dimensional Specifications
Outer Diameter, Top:  2.30 IN   (58.42 MM)

Outer Diameter, Bottom:  2.31 IN   (58.67 MM)

Inner Diameter, Top:  0.44 IN   (11.18 MM)

Inner Diameter, Bottom:  0.51 IN   (12.95 MM)

Length:  4.63 IN   (117.60 MM)

Thread:  NONE



Physical Specifications
Handle:  NONE

Seal Material:  NONE

Type of Adhesive:  PLASTISOL

Type of Endcap:  PLATED STEEL

Center Tube:  PLATED STEEL

Type of Media:  PAPER

Filter Area:  SQ.IN.

Plating:  ELECTROTIN PLATED

Outer Jacket:  YES - PAPER

Configuration:  DOUBLE OPEN END



Packaging Specifications
Number per Carton:  1

Carton Weight:  4.00 LB   (1.81 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
