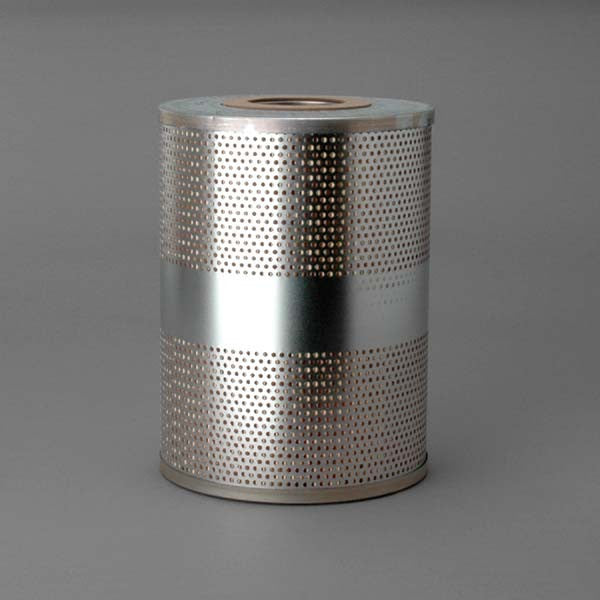

LP2247 | Luber-Finer | OFS # 97-28-1308
Usually Ships In 24-48 Hours
Performance Data
Micron Rating: 25.00 NOMINAL
Beta Rating: N/A
Collapse Pressure Rating: N/A
Maximum Temperature: N/A
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 7.38 IN (187.45 MM)
Outer Diameter, Bottom: 7.38 IN (187.45 MM)
Inner Diameter, Top: 2.84 IN (72.14 MM)
Inner Diameter, Bottom: 2.84 IN (72.14 MM)
Length: 10.25 IN (260.35 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material: BUNA-N
Type of Adhesive: N/A
Type of Endcap: PLATED STEEL
Center Tube: PLATED STEEL
Type of Media: PAPER
Filter Area: N/A
Plating: N/A
Outer Jacket: YES - METAL
Configuration: DOUBLE OPEN END
Packaging Specifications
Number per Carton: 6
Carton Weight: 26.00 LB (11.79 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
