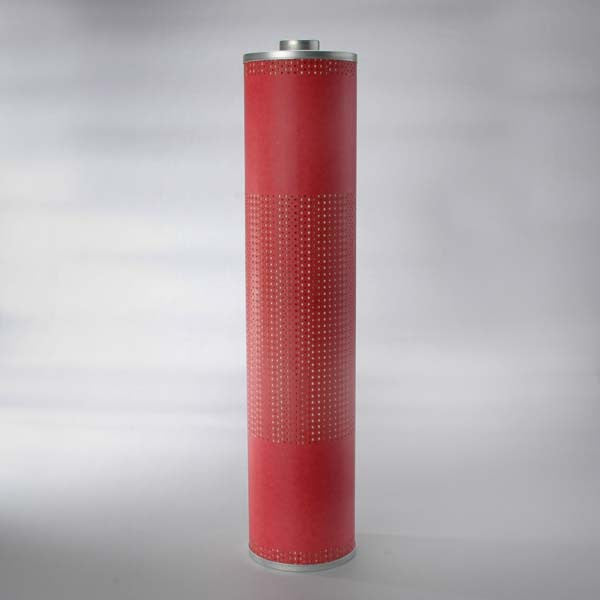

LP2243 | Luber-Finer | Pleated Paper Filter Element
***Image may vary***

LP2243 | Luber-Finer | OFS # 97-01-0785

  • $47.03


Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 12.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating:

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID



Dimensional Specifications
Outer Diameter, Top: 6.50 IN (165.10 MM)

Outer Diameter, Bottom: 6.50 IN (165.10 MM)

Inner Diameter, Top: 1.47 IN (37.34 MM)

Inner Diameter, Bottom:

Length: 29.38 IN (746.25 MM)

Thread: NONE



Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating:

Outer Jacket: YES - PAPER

Configuration: SINGLE OPEN END



Packaging Specifications
Number per Carton: 4

Carton Weight: 20.40 LB (9.25 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
