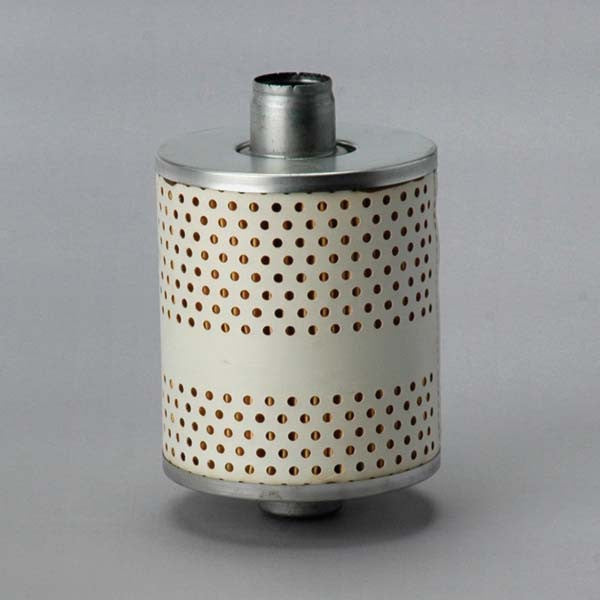

LP127 | Luber-Finer | Pleated Paper Filter Element
***Image may vary***

LP127 | Luber-Finer | OFS # 97-01-0994

  • $5.54


Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 25.00 NOMINAL

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID



Dimensional Specifications
Outer Diameter, Top: 3.47 IN (88.14 MM)

Outer Diameter, Bottom:

Inner Diameter, Top: 0.50 IN (12.70 MM)

Inner Diameter, Bottom: 0.94 IN (23.88 MM)

Length: 5.63 IN (143.00 MM)

Thread: NONE



Physical Specifications
Handle: NONE

Seal Material:

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating:

Outer Jacket: YES

Configuration:



Packaging Specifications
Number per Carton: 1

Carton Weight: 5.50 LB (2.49 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
