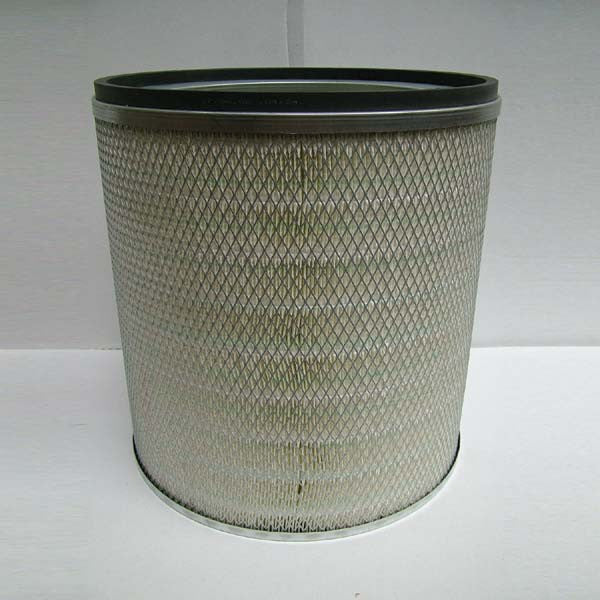

LAF3535A | Luber-Finer | Intake Air Filter Element
***Image may vary***

LAF3535A | Luber-Finer | OFS # 97-22-0395

  • $77.30


Usually Ships In 24-48 Hours

Performance Data
Micron Rating:  15.00 NOMINAL

Beta Rating:  N/A

Collapse Pressure Rating:  N/A

Maximum Temperature:  250 F

Direction of Flow:  INSIDE->OUT

Recommended Changeout Differential Pressure:  20 PSID

Additional Notes:  PLASTIC FIN ASSEMBLY ON THE OPEN END.



Dimensional Specifications
Outer Diameter, Top:  13.78 IN   (350.01 MM)

Outer Diameter, Bottom:  13.78 IN   (350.01 MM)

Inner Diameter, Top:  9.44 IN   (239.78 MM)

Inner Diameter, Bottom:  0.50 IN   (12.70 MM)

Length:  14.50 IN   (368.30 MM)

Thread:  NONE



Physical Specifications
Handle:  NONE

Seal Material:  BUNA-N

Type of Adhesive:  PLASTISOL

Type of Endcap:  PLATED STEEL

Center Tube:  PLATED STEEL

Type of Media:  PAPER

Filter Area:  SQ.IN.

Plating:  ELECTROTIN PLATED

Outer Jacket:  YES - METAL

Configuration:  SINGLE OPEN WITH B/H



Packaging Specifications
Number per Carton:  1

Carton Weight:  9.20 LB   (4.17 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

Intake Air Filter Element
