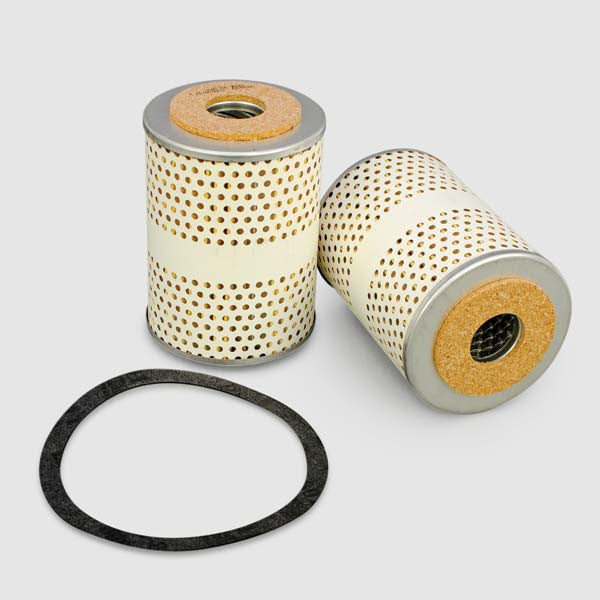

L10F | Luber-Finer | Pleated Paper Filter Element
***Image may vary***

L10F | Luber-Finer | OFS # 97-25-0054

  • $8.70


Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: 75 PSID

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID



Dimensional Specifications
Outer Diameter, Top: 3.19 IN (81.03 MM)

Outer Diameter, Bottom: 3.19 IN (81.03 MM)

Inner Diameter, Top: 1.06 IN (26.92 MM)

Inner Diameter, Bottom: 1.06 IN (26.92 MM)

Length: 4.50 IN (114.30 MM)

Thread: NONE



Physical Specifications
Handle: NONE

Seal Material: CORK

Type of Adhesive: PLASTISOL

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: NONE

Outer Jacket: YES - PAPER

Configuration: DOUBLE OPEN END



Packaging Specifications
Number per Carton: 1

Carton Weight: 15.00 LB (6.80 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
