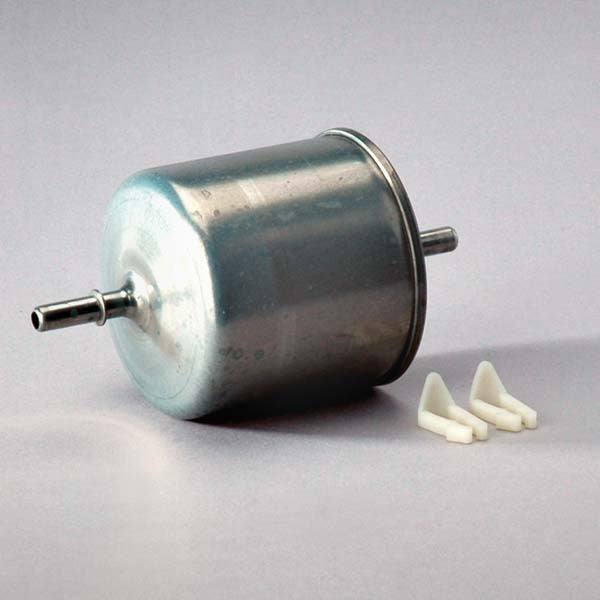

G6387 | Luber-Finer | In-Line Fuel Filter
***Image may vary***

G6387 | Luber-Finer | In-Line Fuel Filter | OFS # 97-28-0767

  • $14.19


Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: 75 PSID

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID



Dimensional Specifications
Outer Diameter, Top: 2.96 IN (75.18 MM)

Outer Diameter, Bottom:

Inner Diameter, Top:

Inner Diameter, Bottom:

Length: 5.63 IN (143.00 MM)

Thread: N/A



Physical Specifications
Handle: NONE

Seal Material: NONE

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube:

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: NONE

Outer Jacket: YES - METAL

Configuration: INLET CON = .315



Packaging Specifications
Number per Carton: 1

Carton Weight: 9.00 LB (4.08 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
