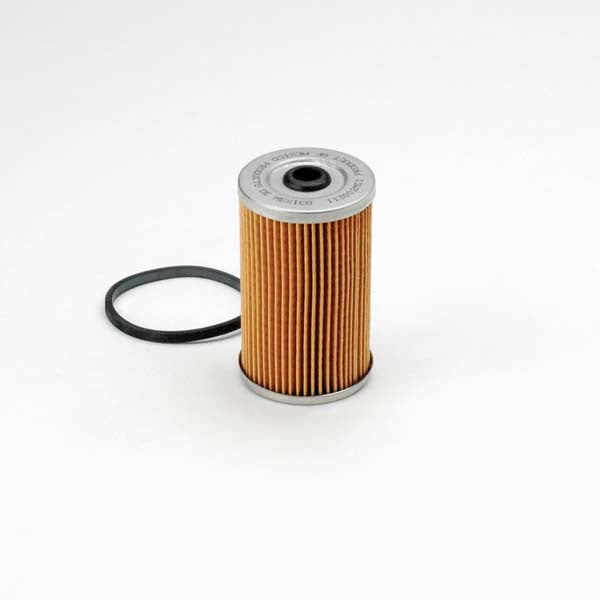

G6 | Luber-Finer | Pleated Paper Filter Element
***Image may vary***

G6 | Luber-Finer | OFS # 97-01-0703

  • $3.66


Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 0.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: 75 PSID

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID



Dimensional Specifications
Outer Diameter, Top: 2.08 IN (52.83 MM)

Outer Diameter, Bottom: 2.08 IN (52.83 MM)

Inner Diameter, Top: 0.41 IN (10.41 MM)

Inner Diameter, Bottom:

Length: 3.48 IN (88.39 MM)

Thread: NONE



Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: PLASTISOL

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: NONE

Outer Jacket: YES

Configuration: SINGLE OPEN END



Packaging Specifications
Number per Carton: 1

Carton Weight: 0.20 LB (0.09 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
