02P59 | KAYDON | OFS # 97-01-0002

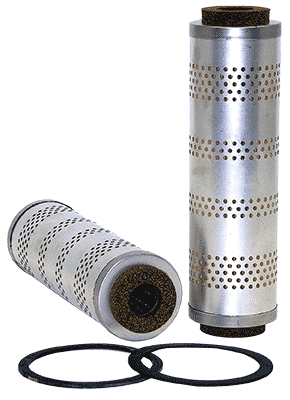

***Image may vary***

02P59 | KAYDON | OFS # 97-01-0002

  • $12.53


Usually ships in 24-48 hours Usually Ships In 24-48 Hours

Performance Data
Micron Rating:  10.00 NOMINAL

Beta Rating:  N/A

Collapse Pressure Rating:  100 PSID

Maximum Temperature:  225 F

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID



Dimensional Specifications
Outer Diameter, Top:  2.63 IN   (66.80 MM)

Outer Diameter, Bottom:  2.63 IN   (66.80 MM)

Inner Diameter, Top:  1.06 IN   (26.92 MM)

Inner Diameter, Bottom:  1.06 IN   (26.92 MM)

Length:  9.75 IN   (247.65 MM)

Thread:  NONE



Physical Specifications
Handle:  NONE

Seal Material:  BUNA-N

Type of Adhesive:  EPOXY

Type of Endcap:  PLATED STEEL

Center Tube:  PLATED STEEL

Type of Media:  PAPER

Filter Area:  5 SQ.FT.

Plating:  ELECTROTIN PLATED

Outer Jacket:  YES - METAL

Configuration:  DOUBLE OPEN END



Packaging Specifications
Number per Carton:  12

Carton Weight:  6.40 LB   (2.90 KG)

**All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
