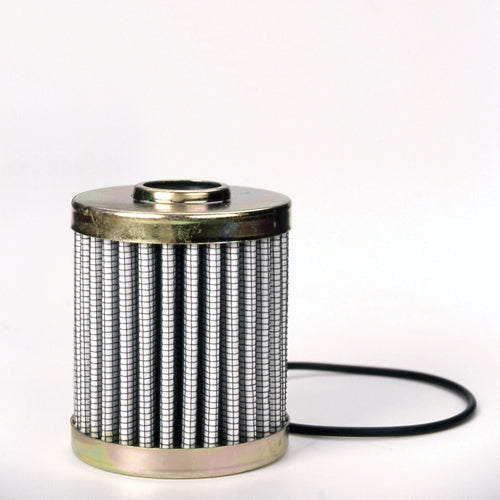

370Z220A | Fairey Arlon | OFS-97-05-0120

Performance Data
Micron Rating:  3.00 ABSOLUTE

Beta Rating:  B3=200

Collapse Pressure Rating:  250 PSID

Maximum Temperature:  250 F

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  50 PSID

Additional Notes:  GLASS MEDIA SCREENED ON INSIDE AND OUTSIDE OF PLEAT.

Dimensional Specifications
Outer Diameter, Top:  3.70 IN   (93.98 MM)

Outer Diameter, Bottom:  3.70 IN   (93.98 MM)

Inner Diameter, Top:  1.90 IN   (48.26 MM)

Inner Diameter, Bottom:

Length:  7.80 IN   (198.12 MM)

Thread:  NONE

Physical Specifications
Handle:  NONE

Seal Material:  BUNA-N

Type of Adhesive:  EPOXY

Type of Endcap:  STEEL

Center Tube:  PLATED STEEL

Type of Media:  MICROGLASS

Filter Area:  SQ.IN.

Plating:  ZINC PLATED

Outer Jacket:  NONE

Configuration:  SINGLE OPEN END

Packaging Specifications
Number per Carton:  1

Carton Weight:  2.00 LB   (0.91 KG)

**All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacturer parts, Names and part # used for cross reference only.**
