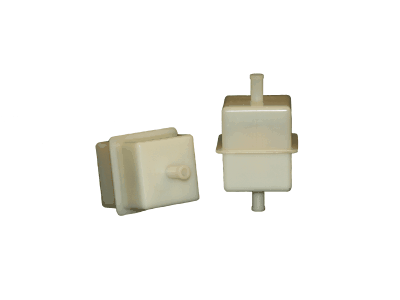

33198 | WIX | Fuel Filter | OFS # 97-28-0336

Lead Time: Usually Ships In 24-28 Hours

Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: 75 PSID

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 1.94 IN (49.28 MM)

Outer Diameter, Bottom: 1.94 IN (49.28 MM)

Inner Diameter, Top: 0.25 IN (6.35 MM)

Inner Diameter, Bottom: 0.25 IN (6.35 MM)

Length: 3.88 IN (98.55 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: NONE

Type of Adhesive: NONE

Type of Endcap: PLATED STEEL

Center Tube:

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: NONE

Outer Jacket: YES

Configuration: DOUBLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: 0.20 LB (0.09 KG)
