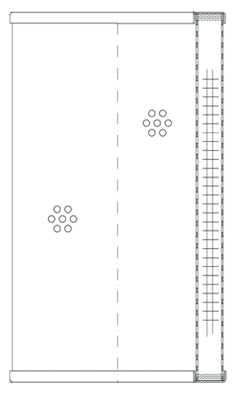

R16E25C | WIX | Hydraulic Element | OFS # 97-05-3397

Lead Time: Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 25.00

Beta Rating: N/A

Collapse Pressure Rating: 145 PSI

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Dimensional Specifications
Outer Diameter, Top: 4.44 IN (112.78 MM)

Outer Diameter, Bottom: 4.44 IN (112.78 MM)

Inner Diameter, Top: 2.75 IN (69.85 MM)

Inner Diameter, Bottom: 2.75 IN (69.85 MM)

Length: 8.66 IN (219.96 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material:

Type of Adhesive:

Type of Endcap:

Center Tube:

Type of Media: PAPER

Filter Area: SQ.IN"

Plating:

Outer Jacket: NONE - WIRE MESH

Configuration: DOUBLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight:
