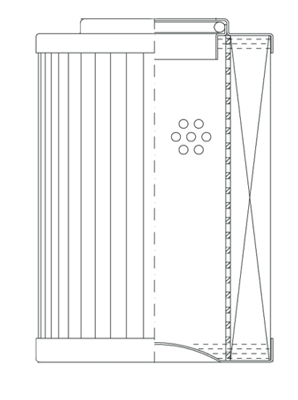

Main Filter Grou | MF0576106 | Hydraulic Filter Element | OFS # 97-40-1721

Performance Data

Micron Rating:  25.00

Beta Rating 1: 200/20.7

Beta Rating 2: 1000/26.6

Collapse Pressure Rating: 363

Maximum Operating Temperature: 248

Lowest Operating Temperature: -13

Direction of Flow: Outside-In

Dimensional Specifications

Outer Diameter, Top: 2.177 Inches

Outer Diameter, Bottom: 2.177 Inches

Inner Diameter, Top: 0.748 Inches

Inner Diameter, Bottom:

Length: 2.610 Inches

Thread:

Gasket Type: Viton

Physical Specifications

Handle:  NONE

Seal Material:

Type of Adhesive:

Type of Endcap:

Center Tube:

Type of Media: Glass

Filter Area: 60 Square Inch

Plating:

Outer Jacket:  NONE

Configuration:

Packaging Specifications

Number per Carton:  1

Carton Weight: 0.4356

Click Here To See Dimensional Specifications & To Compare Our Cost To Main Filter Group

***All Online Filter Supply replacement parts are equivalent to or interchangeable with original manufacture parts, Names and part # used for cross reference only.***
