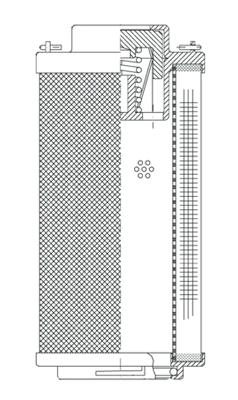

Main Filter Grou | MF0064181 | Hydraulic Element | OFS # 97-40-5613
Performance Data
Micron Rating: 20.00 ABSOLUTE
Beta Rating: B20 = 200
Collapse Pressure Rating:
Maximum Temperature: 248 F
Direction of Flow: OUTSIDE->IN
Dimensional Specifications
Outer Diameter, Top: 5.65 IN (143.51 MM)
Outer Diameter, Bottom: 5.65 IN (143.51 MM)
Inner Diameter, Top:
Inner Diameter, Bottom: 3.79 IN (96.27 MM)
Length: 36.26 IN (921.00 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material: VITON
Type of Adhesive: EPOXY
Type of Endcap:
Center Tube: PLATED STEEL
Type of Media: GLASS/CHEMICAL
Filter Area: 2626 SQ.IN.
Plating:
Outer Jacket: NONE
Configuration: SINGLE OPEN END
Packaging Specifications
Number per Carton: 1
Carton Weight: ***All Online Filter Supply replacement parts are equivalent to or interchangeable with original manufacture parts, Names and part # used for cross reference only.***
