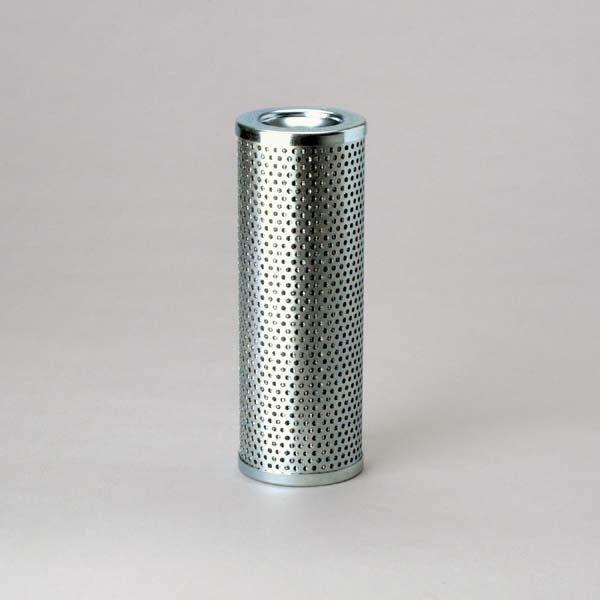

MF0063405 | Main Filter Grou | Hydraulic Element | OFS # 97-28-5274
Performance Data
Micron Rating: 10.00 ABSOLUTE
Beta Rating: B10 = 200
Collapse Pressure Rating: 75 PSID
Maximum Temperature: 225 F
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 2.81 IN (71.37 MM)
Outer Diameter, Bottom:
Inner Diameter, Top: 1.81 IN (45.97 MM)
Inner Diameter, Bottom: 0.31 IN (7.87 MM)
Length: 7.69 IN (195.33 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material: BUNA-N
Type of Adhesive: EPOXY
Type of Endcap: PLATED STEEL
Center Tube: NONE
Type of Media: MICROGLASS
Filter Area: SQ.IN.
Plating: ELECTROTIN PLATED
Outer Jacket: YES - METAL
Configuration:
Packaging Specifications
Number per Carton: 1
Carton Weight: **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
