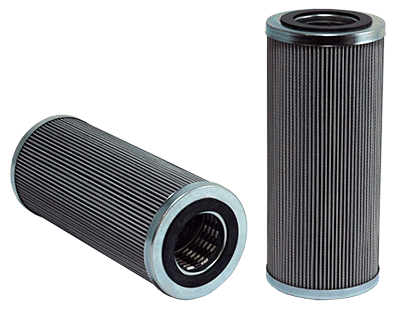

Main Filter Grou | MF0058327 | Hydraulic Elements | OFS # 97-32-4363
Performance Data
Micron Rating: 10.00
Beta Rating:
Collapse Pressure Rating: 75 PSID
Maximum Temperature: 248 F
Direction of Flow: OUTSIDE-->IN
Dimensional Specifications
Outer Diameter, Top: 3.90 IN (99.06 MM)
Outer Diameter, Bottom: 3.90 IN (99.06 MM)
Inner Diameter, Top: 1.97 IN (50.04 MM)
Inner Diameter, Bottom: 1.97 IN (50.04 MM)
Length: 9.17 IN (232.92 MM)
Thread:
Physical Specifications
Handle: NONE
Seal Material: NITRILE
Type of Adhesive:
Type of Endcap:
Center Tube:
Type of Media: MICROGLASS
Filter Area:
Plating:
Outer Jacket: NONE
Configuration: DOUBLE OPEN END
Packaging Specifications
Number per Carton: 1
Carton Weight: 2.00 LB (0.91 KG) ***All Online Filter Supply replacement parts are equivalent to or interchangeable with original manufacture parts, Names and part # used for cross reference only.***
