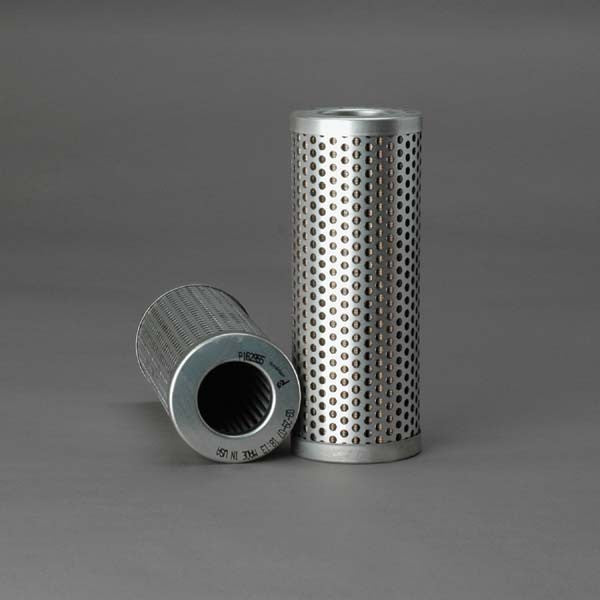

HF6447 | Separation Tech. | Hydraulic Filter Element | OFS # 97-28-5409
Performance Data
Micron Rating: 23.00
Beta Rating:
Collapse Pressure Rating: 149 psi (10.3 bar)
Maximum Temperature:
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 3.10 IN (78.74 MM)
Outer Diameter, Bottom: 3.10 IN (78.74 MM)
Inner Diameter, Top: 1.74 IN (44.19 MM)
Inner Diameter, Bottom: 1.74 IN (44.19 MM)
Length: 8.00 IN (203.20 MM)
Thread:
Physical Specifications
Handle: NONE
Seal Material:
Type of Adhesive:
Type of Endcap: PLATED STEEL
Center Tube:
Type of Media: CELLULOSE
Filter Area: SQ.IN.
Plating:
Outer Jacket: NONE
Configuration:
Packaging Specifications
Number per Carton: 1
Carton Weight: 1.40 LB (0.64 KG)
**All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
