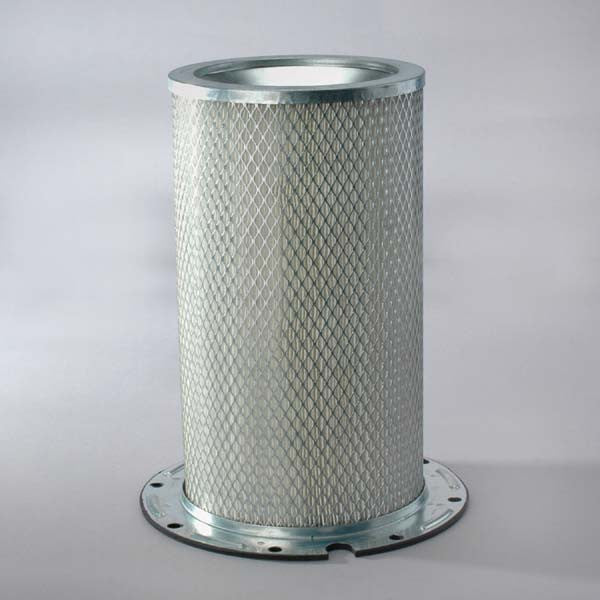

FC624 | Gpc | Intake Air Filter Element
***Image may vary***

FC624 | Gpc | OFS # 97-22-0808

  • $37.40


Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID



Dimensional Specifications
Outer Diameter, Top: 10.16 IN (258.06 MM)

Outer Diameter, Bottom: 7.68 IN (195.07 MM)

Inner Diameter, Top: 6.02 IN (152.91 MM)

Inner Diameter, Bottom:

Length: 13.05 IN (331.47 MM)

Thread: NONE



Physical Specifications
Handle: NONE

Seal Material:

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube:

Type of Media: PAPER

Filter Area: SQ.IN.

Plating:

Outer Jacket: YES

Configuration: SINGLE OPEN/COVER



Packaging Specifications
Number per Carton: 1

Carton Weight: 4.40 LB (2.00 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

Intake Air Filter Element
