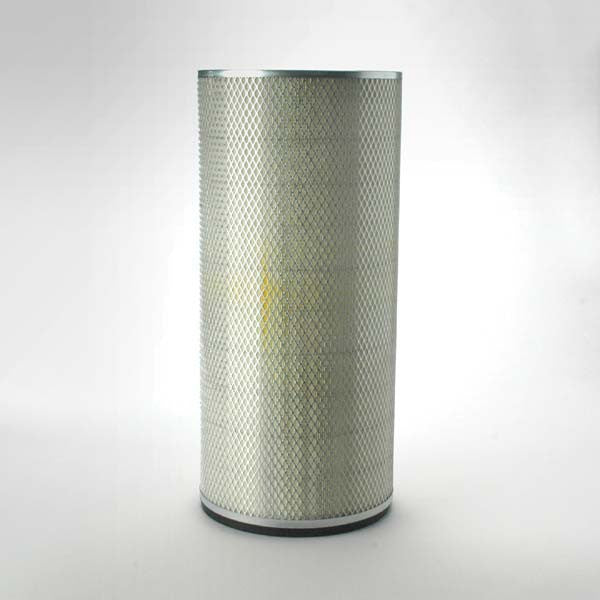

FC610 | Gpc | Intake Air Filter Element
***Image may vary***

FC610 | Gpc | OFS # 97-22-0885

  • $77.20


Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: N/A

Maximum Temperature: 250 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID



Dimensional Specifications
Outer Diameter, Top: 10.25 IN (260.35 MM)

Outer Diameter, Bottom: 10.25 IN (260.35 MM)

Inner Diameter, Top: 0.91 IN (23.11 MM)

Inner Diameter, Bottom: 9.13 IN (231.90 MM)

Length: 22.50 IN (571.50 MM)

Thread: NONE



Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: PLASTISOL

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: ELECTROTIN PLATED

Outer Jacket: YES - METAL

Configuration: SINGLE OPEN END/BH



Packaging Specifications
Number per Carton: 1

Carton Weight: 6.70 LB (3.04 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

Intake Air Filter Element
