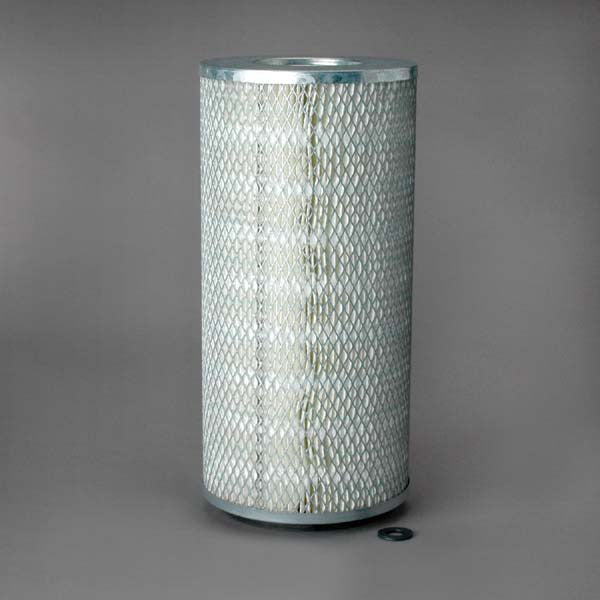

FC470 | Gpc | Intake Air Filter Element
***Image may vary***

FC470 | Gpc | OFS # 97-28-1358

  • $46.47


Usually Ships In 24-48 Hours

Performance Data
Micron Rating:  15.00 NOMINAL

Beta Rating:  N/A

Collapse Pressure Rating:  N/A

Maximum Temperature:  250 F

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID



Dimensional Specifications
Outer Diameter, Top:  6.85 IN   (173.99 MM)

Outer Diameter, Bottom:  6.83 IN   (173.48 MM)

Inner Diameter, Top:  0.68 IN   (17.27 MM)

Inner Diameter, Bottom:  3.48 IN   (88.39 MM)

Length:  14.51 IN   (368.55 MM)

Thread:  NONE



Physical Specifications
Handle:  NONE

Seal Material:  BUNA-N

Type of Adhesive:  PLASTISOL

Type of Endcap:  PLATED STEEL

Center Tube:  PLATED STEEL

Type of Media:  PAPER

Filter Area:  SQ.IN.

Plating:  NONE

Outer Jacket:  YES - METAL

Configuration:  SINGLE OPEN END/BH



Packaging Specifications
Number per Carton:  1

Carton Weight:  3.50 LB   (1.59 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

Intake Air Filter Element
