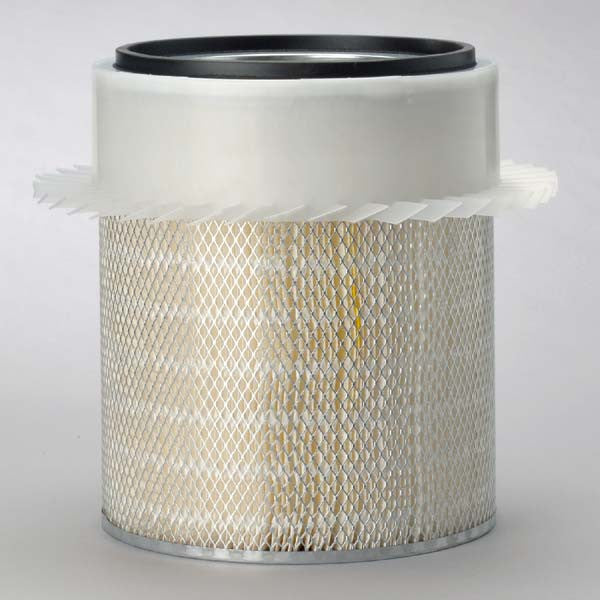

FC381K | Gpc | W/Fin | OFS # 97-22-0515

Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: N/A

Maximum Temperature: 250 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 15.50 IN (393.70 MM)

Outer Diameter, Bottom: 12.09 IN (307.09 MM)

Inner Diameter, Top: 0.53 IN (13.46 MM)

Inner Diameter, Bottom: 7.72 IN (196.09 MM)

Length: 14.50 IN (368.30 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: EPOXY

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: 10670.85 SQ.IN

Plating: N/A

Outer Jacket: YES - METAL

Configuration: SINGLE W/ BOLT HOLE

Packaging Specifications
Number per Carton: 1

Carton Weight: 10.00 LB (4.54 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
