FC380K | Gpc | OFS # 97-22-0671
Performance Data
Micron Rating: 15.00 NOMINAL
Beta Rating: N/A
Collapse Pressure Rating: N/A
Maximum Temperature: 250 F
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Additional Notes: FINS ON BOLT HOLE END.
Dimensional Specifications
Outer Diameter, Top: 10.03 IN (254.76 MM)
Outer Diameter, Bottom: 7.94 IN (201.68 MM)
Inner Diameter, Top: 0.91 IN (23.11 MM)
Inner Diameter, Bottom: 3.59 IN (91.19 MM)
Length: 12.25 IN (311.15 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material: BUNA-N
Type of Adhesive: PLASTISOL
Type of Endcap: PLATED STEEL
Center Tube: PLATED STEEL
Type of Media: PAPER
Filter Area: SQ.IN.
Plating: NONE
Outer Jacket: YES - METAL
Configuration: SINGLE OPEN END
Packaging Specifications
Number per Carton: 1
Carton Weight: 5.00 LB (2.27 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

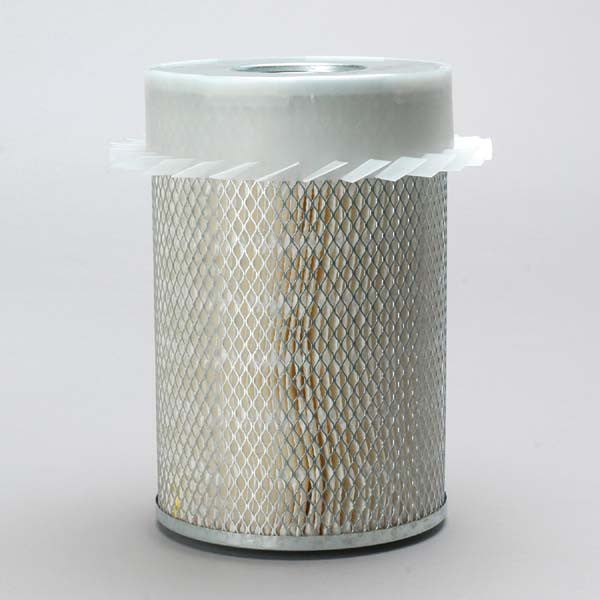

Intake Air Filter Element
