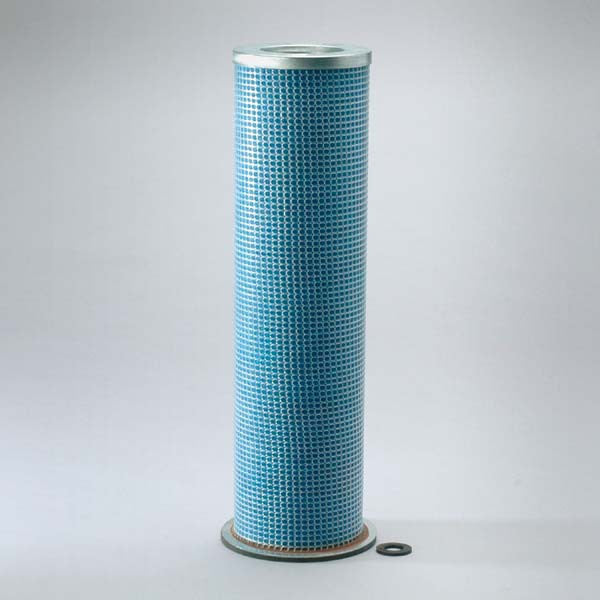

FC316 | Gpc | Intake Air Filter Element
***Image may vary***

FC316 | Gpc | OFS # 97-28-1650

  • $33.50


Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 15.00

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID



Dimensional Specifications
Outer Diameter, Top: 4.84 IN (122.94 MM)

Outer Diameter, Bottom: 4.09 IN (103.89 MM)

Inner Diameter, Top: 3.66 IN (92.96 MM)

Inner Diameter, Bottom: 0.67 IN (17.02 MM)

Length: 15.06 IN (382.52 MM)

Thread: NONE



Physical Specifications
Handle: NONE

Seal Material:

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube: STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating:

Outer Jacket: YES

Configuration: SINGEL / BOLT HOLE



Packaging Specifications
Number per Carton: 1

Carton Weight: 1.60 LB (0.73 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

Intake Air Filter Element
