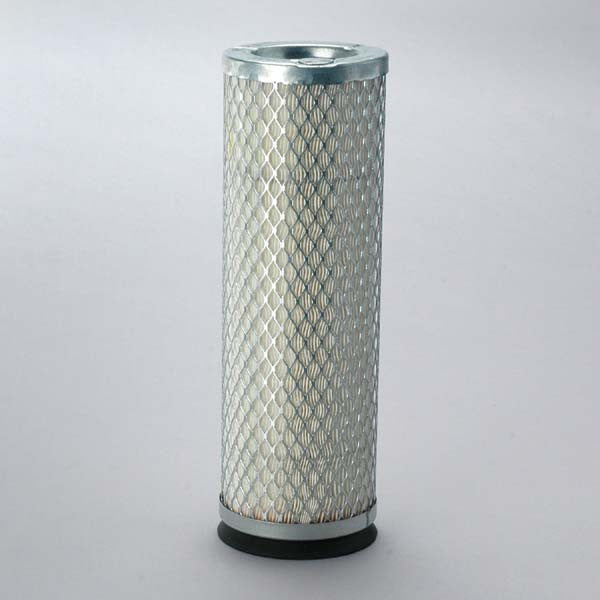

FC208 | Gpc | Intake Air Filter Element
***Image may vary***

FC208 | Gpc | OFS # 97-22-0433

  • $14.40


Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: N/A

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID



Dimensional Specifications
Outer Diameter, Top: 3.56 IN (90.42 MM)

Outer Diameter, Bottom: 3.56 IN (90.42 MM)

Inner Diameter, Top: 2.03 IN (51.56 MM)

Inner Diameter, Bottom:

Length: 11.00 IN (279.40 MM)

Thread: NONE



Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: PLASTISOL

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: NONE

Outer Jacket: YES - METAL

Configuration: SINGLE OPEN END



Packaging Specifications
Number per Carton: 1

Carton Weight: 7.50 LB (3.40 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

Intake Air Filter Element
