LFR8607 | Fleetrite Replacement | OFS # 97-25-0344

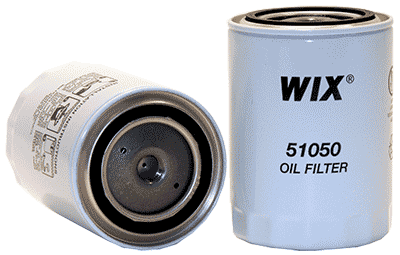

Spin-On Filter Element In Stock

Performance Data
Micron Rating: 25.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: 75 PSID

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
(A) Outer Diameter, Top: 3.73 IN (94.74 MM)

(B) Outer Diameter, Bottom: 3.73 IN (94.74 MM)

(C) Inner Diameter, Top:

(D) Inner Diameter, Bottom:

(E) Length: 5.78 IN (146.81 MM)

(F) Thread: 5/8-18 UNF2B

Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: PLASTISOL

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: ELECTROTIN PLATED

Outer Jacket: YES

Configuration: SINGLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: 1.20 LB (0.54 KG)
