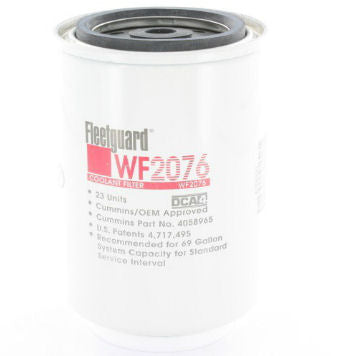

WF2076 | FLEETGUARD | Water Filter Element | OFS # 97-28-0948

Lead Time: Usually Ships In 24-48 Hours

Performance Data
Micron Rating:  15.00 NOMINAL

Beta Rating:  N/A

Collapse Pressure Rating:

Maximum Temperature:  225 F

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications
Outer Diameter, Top:  3.72 IN   (94.49 MM)

Outer Diameter, Bottom:  3.72 IN   (94.49 MM)

Inner Diameter, Top:

Inner Diameter, Bottom:

Length:  7.16 IN   (181.86 MM)

Thread:  11/16-16

Physical Specifications
Handle:  NONE

Seal Material:  BUNA-N

Type of Adhesive:  PLASTISOL

Type of Endcap:  PLATED STEEL

Center Tube:  PLATED STEEL

Type of Media:

Filter Area:  SQ.IN.

Plating:  NONE

Outer Jacket:  YES - METAL

Configuration:  SINGLE OPEN END

Packaging Specifications
Number per Carton:  1

Carton Weight:  2.10 LB   (0.95 KG)
