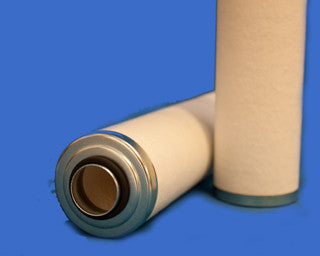

8CF20-147X1 - FINITE - OFS # 97-24-0074

AVAILABILITY - Usually ships in 24-48 hours

Performance Data
Micron Rating: 0.30 ABSOLUTE

Beta Rating: N/A

Collapse Pressure Rating:

Maximum Temperature: 250 F

Direction of Flow: INSIDE->OUT

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 2.88 IN (73.15 MM)

Outer Diameter, Bottom:

Inner Diameter, Top: 1.25 IN (31.75 MM)

Inner Diameter, Bottom:

Length: 15.13 IN (384.30 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive:

Type of Endcap: NYLON

Center Tube: STEEL

Type of Media: MICROGLASS

Filter Area: SQ.IN.

Plating:

Outer Jacket: NONE

Configuration: SINGLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: 3.00 LB (1.36 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
