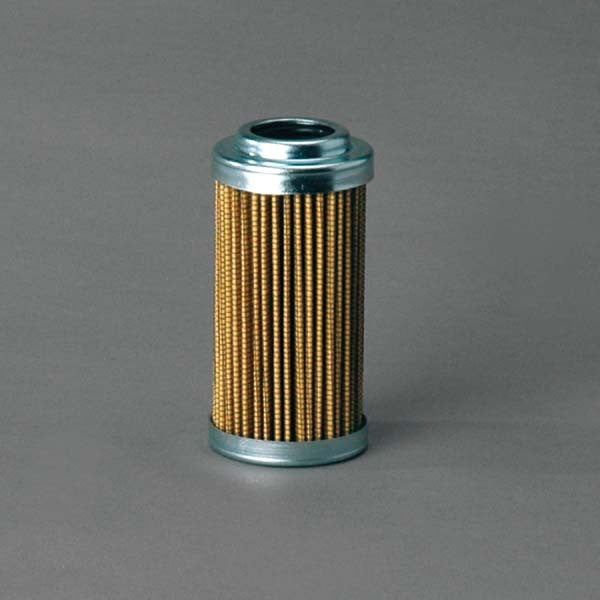

D310C10A | Filtrec | OFS # 97-28-7858

Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 10.00 NOMINAL

Beta Rating:

Collapse Pressure Rating: 363 PSID

Maximum Temperature: 248 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 1.63 IN (41.40 MM)

Outer Diameter, Bottom:

Inner Diameter, Top: 0.90 IN (22.86 MM)

Inner Diameter, Bottom:

Length: 3.38 IN (85.85 MM)

Thread:

Physical Specifications
Handle: NONE

Seal Material: VITON

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube: STEEL

Type of Media: PAPER

Filter Area: 63 SQ.IN.

Plating:

Outer Jacket: NONE

Configuration: SINGLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
