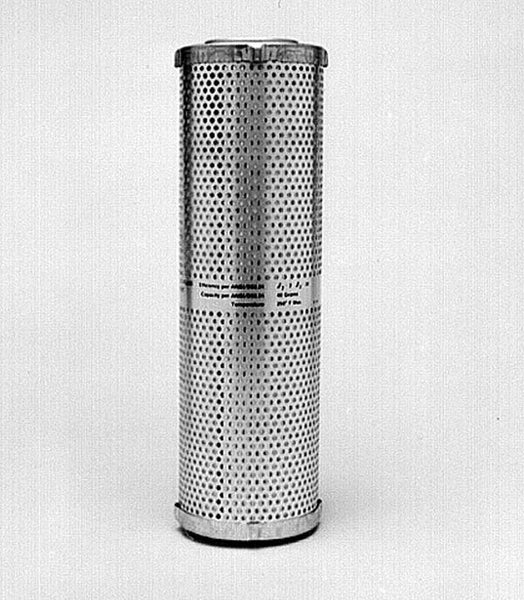

D140G10A | Filtrec | Pleated Microglass Element | OFS # 97-F9600-4K12B

PLEATED MICROGLASS ELEMENT Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 12.00 ABSOLUTE

Beta Rating: B12 = 200

Collapse Pressure Rating: 150 PSID

Maximum Temperature: 250 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 50 PSID

Dimensional Specifications
Outer Diameter, Top: 3.10 IN (78.74 MM)

Outer Diameter, Bottom: 3.10 IN (78.74 MM)

Inner Diameter, Top: 1.72 IN (43.69 MM)

Inner Diameter, Bottom:

Length: 4.60 IN (116.84 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: VITON

Type of Adhesive: EPOXY

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: MICROGLASS

Filter Area: 270 SQ.IN.

Plating: ZINC PLATED

Outer Jacket: NONE - NONE

Configuration: SINGLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: 1.00 LB (0.45 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
