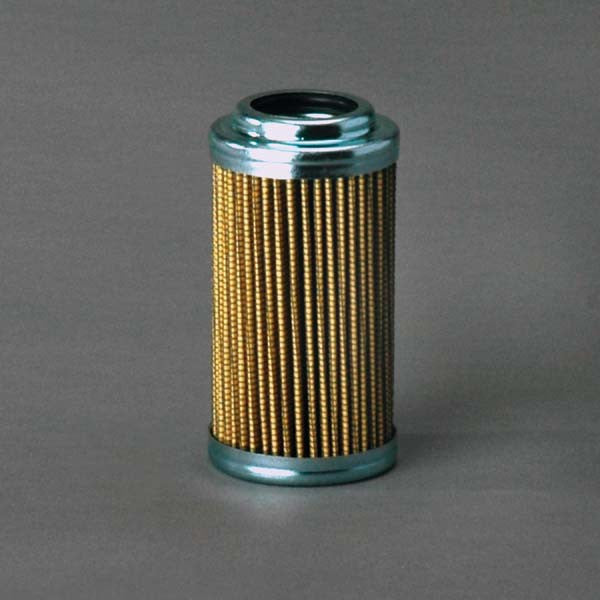

D110C10AV | Filtrec | OFS # 97-01-3403

Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 10.00 NOMINAL

Beta Rating:

Collapse Pressure Rating: 305 PSID

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 1.77 IN (44.96 MM)

Outer Diameter, Bottom: 1.77 IN (44.96 MM)

Inner Diameter, Top: 1.00 IN (25.40 MM)

Inner Diameter, Bottom:

Length: 3.38 IN (85.85 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: VITON

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: 61 SQ.IN.

Plating:

Outer Jacket: YES

Configuration: SINGLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: 1.00 LB (0.45 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
