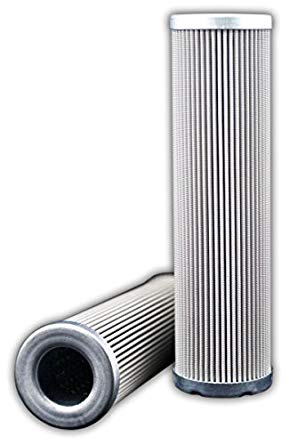

SF0257100WHP | SWIFT | Pleated Wire Element | OFS # 97-06-0631

Lead Time: Usually ships in 24-48 hours

Filter Type: Pleated Wire Element

Performance Data
Micron Rating:  100.00 ABSOLUTE

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:  275 F

Direction of Flow:  OUTSIDE->IN

Recommended Change-out Differential Pressure:  25 PSID

Dimensional Specifications
Outer Diameter, Top:  1.88 IN   (47.75 MM)

Outer Diameter, Bottom:  1.88 IN   (47.75 MM)

Inner Diameter, Top:  1.00 IN   (25.40 MM)

Length:  6.63 IN   (168.40 MM)

Thread:  NONE

Physical Specifications
Handle:  NONE

Seal Material:  NONE

Type of Adhesive:  EPOXY

Type of End-cap:  PLATED STEEL

Center Tube:  PLATED STEEL

Type of Media:  304 SS WIRE

Filter Area:  SQ.IN.

Plating:  ZINC PLATED

Outer Jacket:  NONE

Configuration:  SINGLE OPEN END

Packaging Specifications
Number per Carton:  1

Carton Weight:  1.00 LB   (0.45 KG)

**All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
