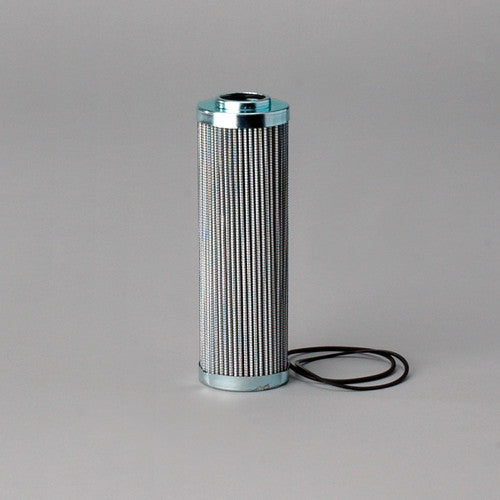

P762860 | Donaldson | Filter Element | OFS # 97-1415437

Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 25.00 ABSOLUTE

Beta Rating: B25=200

Collapse Pressure Rating: 290 PSID

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Dimensional Specifications
Outer Diameter, Top: 1.98 IN (50.29 MM)

Outer Diameter, Bottom: 1.98 IN (50.29 MM)

Inner Diameter, Top: 0.94 IN (23.88 MM)

Inner Diameter, Bottom:

Length: 6.24 IN (158.50 MM)

Thread:

Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: EPOXY

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: MICROGLASS

Filter Area:

Plating:

Outer Jacket: NONE

Configuration: SINGLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
