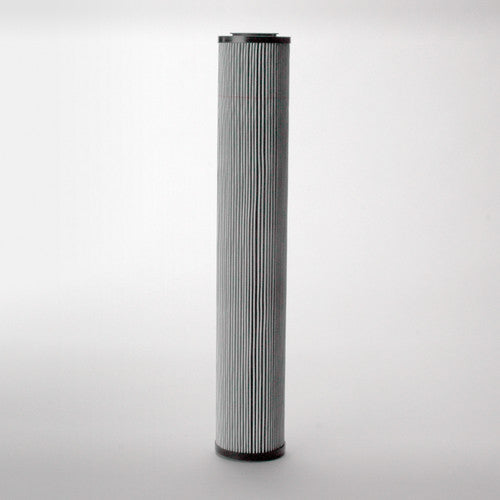

P574195 | Donaldson | OFS # 97-694813

Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 12.00 ABSOLUTE

Beta Rating:

Collapse Pressure Rating: 290 PSID

Maximum Temperature: 248 F

Direction of Flow: OUTSIDE->IN

Dimensional Specifications
Outer Diameter, Top: 3.72 IN (94.49 MM)

Outer Diameter, Bottom: 3.72 IN (94.49 MM)

Inner Diameter, Top: 1.89 IN (48.01 MM)

Inner Diameter, Bottom: 1.89 IN (48.01 MM)

Length: 21.81 IN (553.97 MM)

Thread:

Physical Specifications
Handle: NONE

Seal Material: VITON

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media:

Filter Area:

Plating:

Outer Jacket: NONE

Configuration: DOUBLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
