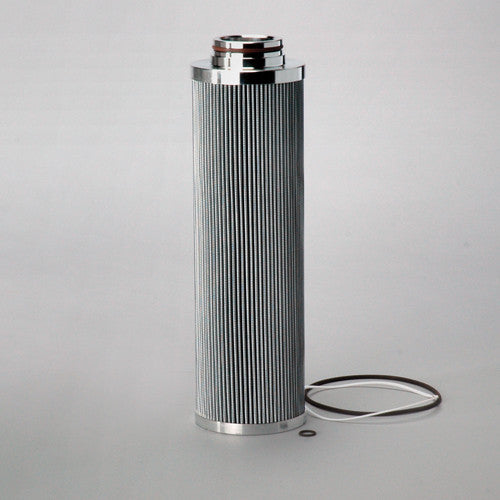

P573804 | Donaldson | Misc. Elements | OFS # 97-41-3938

Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 3.00 ABSOLUTE

Beta Rating: B3=200

Collapse Pressure Rating:

Maximum Temperature: 250 F

Direction of Flow: OUTSIDE->IN

Dimensional Specifications
Outer Diameter, Top: 5.97 IN (151.64 MM)

Outer Diameter, Bottom: 5.97 IN (151.64 MM)

Inner Diameter, Top: 4.14 IN (105.16 MM)

Inner Diameter, Bottom: 4.14 IN (105.16 MM)

Length: 19.30 IN (490.22 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: VITON

Type of Adhesive: EPOXY

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: MICROGLASS

Filter Area:

Plating:

Outer Jacket: NONE

Configuration: DOUBLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
