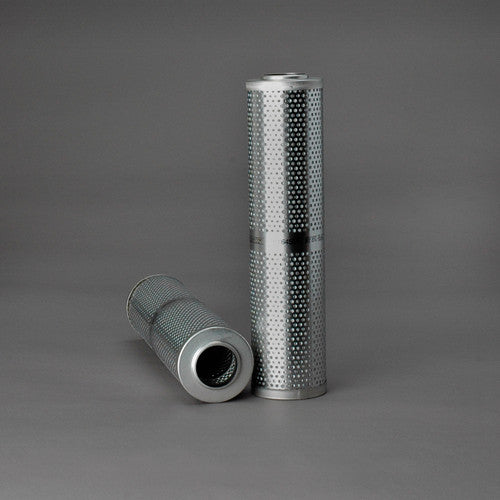

P164596 | Donaldson | Pleated Micro-Glass Filter Element | OFS # 97-F9600-13K6B

Usually Ships In 24-48 Hours

Performance Data
Micron Rating:  6.00 ABSOLUTE

Beta Rating:  B6 = 200

Collapse Pressure Rating:  150 PSID

Maximum Temperature:  250 F

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  50 PSID

Dimensional Specifications
Outer Diameter, Top:  3.10 IN   (78.74 MM)

Outer Diameter, Bottom:  3.10 IN   (78.74 MM)

Inner Diameter, Top:  1.72 IN   (43.69 MM)

Inner Diameter, Bottom:

Length:  13.00 IN   (330.20 MM)

Thread:  NONE

Physical Specifications
Handle:  NONE

Seal Material:  BUNA-N

Type of Adhesive:  EPOXY

Type of Endcap:  PLATED STEEL

Center Tube:  PLATED STEEL

Type of Media:  MICROGLASS

Filter Area:  850 SQ.IN.

Plating:  ZINC PLATED

Outer Jacket:  NONE - NONE

Configuration:  SINGLE OPEN END

Packaging Specifications
Number per Carton:  1

Carton Weight:  2.00 LB   (0.91 KG)

**All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacturer parts, Names and part # used for cross reference only.**
