P030625-016-190 | Donaldson Dynamic | OFS# 97-38-4735

4-6 WEEK LEAD TIME

PERFORMANCE DATA

MICRON RATING: 0.00
BETA RATING: 99.97 % EFF.
COLLAPSE PRESSURE RATING: N/A
MAXIMUM TEMPERATURE: 151 F (66 C)
DIRECTION OF FLOW: N/A
RECOMMENDED CHANGEOUT DIFFERENTIAL PRESSURE: 0 PSID

DIMENSIONAL SPECIFICATIONS

OUTER DIAMETER, TOP: 24.00 IN (609.60 MM)
INNER DIAMETER, TOP: 11.50 IN (292.10 MM)
LENGTH: 24.00 IN (0.00 MM)
THREAD: NONE

PHYSICAL SPECIFICATIONS

HANDLE: NONE
SHAPE: SQUARE
CONSTRUCTION: ALUMINUM
TYPE OF ENDCAP: N/A
CENTER TUBE: N/A
TYPE OF MEDIA: HEPA
FILTER AREA: 299.99 Sq Ft (27.87 Sq M)
PLATING: N/A
OUTER JACKET: NONE
CONFIGURATION: PANEL FILTER

PACKAGING SPECIFICATIONS

NUMBER PER CARTON: 1

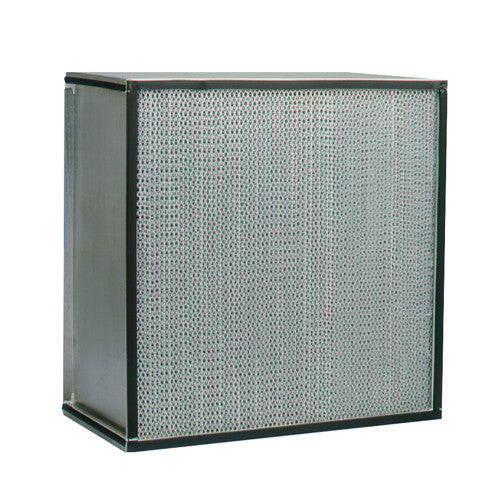

HEPA Panel Filter

24.00-inch length x 24.00-inch width x 11.50-inches deep, for Cabinet 10, 50-54, 60-66, 70-80, 80-84, DFT 2-4 and 3-6, DFO 2-4 and 3-6, SDF, Advanced Dryflo, Dryflo C and D1, ECB, MC 500, MC 1000-6000, Modular MediaFilter Horizontal HA & HS, Modular MediaFilter FD, FDV, MD, MDV, PDV, Ultra-Lok (2000 CFM), Unimaster 750, WSO 25-2 and 25-3 Final Filter, and other brands of collectors.
