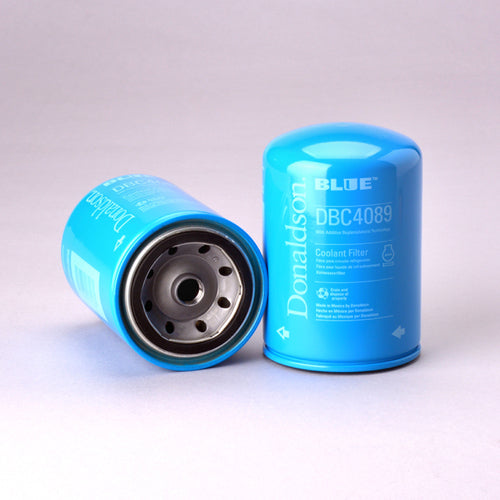

DBC4089 | Donaldson Coolant Spin-On Filter | OFS # 97-30-3649
Lead Time: Usually Ships In 24-48 Hours
Performance Data
Micron Rating: 0.00
Beta Rating:
Collapse Pressure Rating:
Maximum Temperature:
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 3.66 IN (92.96 MM)
Outer Diameter, Bottom: 3.66 IN (92.96 MM)
Inner Diameter, Top:
Inner Diameter, Bottom:
Length: 5.35 IN (135.89 MM)
Thread: M16 x 1.5
Physical Specifications
Handle: NONE
Seal Material:
Type of Adhesive:
Type of Endcap: PLATED STEEL
Center Tube: STEEL
Type of Media:
Filter Area: SQ.IN.
Plating:
Outer Jacket: YES
Configuration:
Packaging Specifications
Number per Carton: 1
Carton Weight: 0.50 LB (0.23 KG)
**All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacturer parts, Names and part # used for cross reference only.**
