12-1841 | Air Supply | Intake Air Filter Element Replacement | Online Filter Supply 97-22-0625

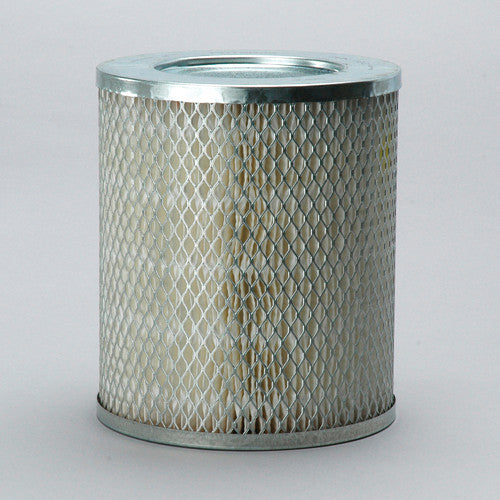

***Image may vary***

12-1841 | Air Supply |

  • $31.76
  • Save $4.22


Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: NOT RATED

Maximum Temperature: 300 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID



Dimensional Specifications
(A) Outer Diameter, Top: 6.63 IN (168.40 MM)

(B) Outer Diameter, Bottom: 6.63 IN (168.40 MM)

(C) Inner Diameter, Top: 4.25 IN (107.95 MM)

(D) Inner Diameter, Bottom: 0.25 IN (6.35 MM)

(E) Length: 7.88 IN (200.15 MM)

(F) Thread: NONE



Physical Specifications
Handle: NONE

Seal Material: NONE

Type of Adhesive: POLYVINYLCHLORIDE

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: N/A

Outer Jacket: YES - METAL

Configuration: SINGLE W/BOLT HOLE



Packaging Specifications
Number per Carton: 1

Carton Weight: 2.10 LB (0.95 KG) ***All Online Filter Supply replacement parts are equivalent to or interchangeable with original manufacture parts, Names and part # used for cross reference only.***

Intake Air Filter Element Replacement
