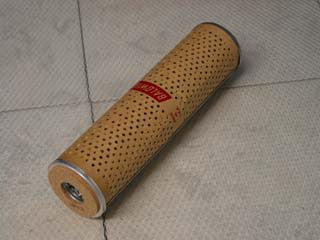

10-0053 | Filter-Mart Corp | OFS # 97-10-0053

Usually ships in 24-48 hours Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: 75 PSID

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 25 PSID

Dimensional Specifications
Outer Diameter, Top: 2.63 IN (66.80 MM)

Outer Diameter, Bottom: 2.63 IN (66.80 MM)

Inner Diameter, Top: 1.06 IN (26.92 MM)

Inner Diameter, Bottom: 1.06 IN (26.92 MM)

Length: 9.69 IN (246.13 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: FIBER

Type of Adhesive: PLASTISOL

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: NONE

Outer Jacket: YES - PAPER

Configuration: DOUBLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight 0.40 LB (0.18 KG)
