9724 | Crosland | OFS # 97-22-0830
Performance Data
Micron Rating: 15.00 NOMINAL
Beta Rating:
Collapse Pressure Rating:
Maximum Temperature:
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Additional Notes: SAFETY FILTER
Dimensional Specifications
Outer Diameter, Top: 3.05 IN (77.47 MM)
Outer Diameter, Bottom: 2.59 IN (65.79 MM)
Inner Diameter, Top: 2.15 IN (54.61 MM)
Inner Diameter, Bottom: 0.66 IN (16.76 MM)
Length: 10.08 IN (256.03 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material: BUNA-N
Type of Adhesive:
Type of Endcap: STEEL
Center Tube: STEEL
Type of Media: FELT
Filter Area: SQ.IN.
Plating: GALVANIZED
Outer Jacket: YES
Configuration: SINGLE/ BOLT HOLE
Packaging Specifications
Number per Carton: 1
Carton Weight: 1.00 LB (0.45 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

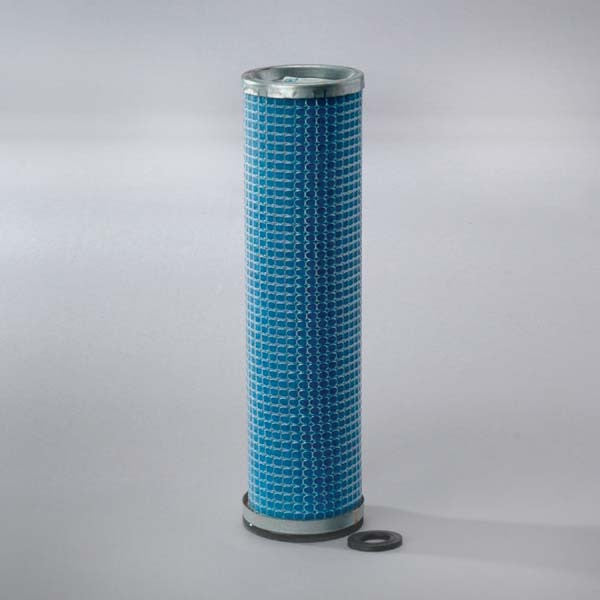

Intake Air Filter Element
